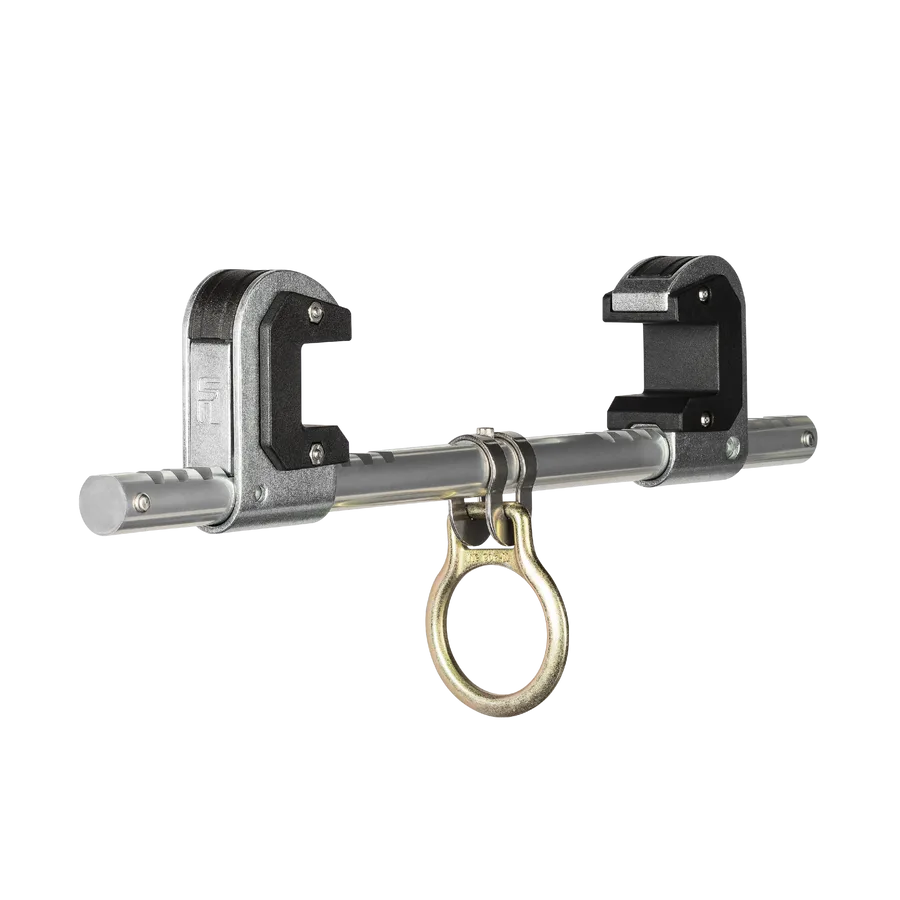

34016 FALLTECH 14" TRAILING BEAM ANCHOR W/ DUAL-CLAMP ADJUSTMENT ITEM# 7530B

This FallTech 14" Trailing Beam Anchor (model 7530B) is designed for temporary mobile fall protection on horizontal I-beams. It provides user-trailing mobility and features a dual-jaw adjustment for secure clamping. The anchor’s design includes an aluminum crossbar and steel clamping jaws with nylon slider pads, ensuring smooth operation and protection of the beam surface. The anchor accommodates beam flanges from 3" to 14" wide and up to 1-1/4" thick. Dual adjusting jaws incorporate concealed locking latches for added safety. The D-ring, constructed of plated alloy steel, remains centered on the crossbar. Material composition includes an aluminum alloy crossbar and plated alloy steel clamping jaws. The D-ring exhibits a minimum static strength of 5,000 lb. This anchor meets ANSI Z359.18-2017 requirements and is OSHA compliant, adhering to OSHA 1926.502 and 1910.140 standards. It’s suitable for applications requiring temporary fall protection on horizontal I-beams. Refer to the included instruction manual and declaration of conformity for detailed specifications and usage guidelines. Performance specifications indicate a static strength of 5,000 lb minimum, an ANSI user capacity between 130 to 310 lb, and an OSHA user capacity between 130 to 425 lb.
